Parking Deck Systems

Waterproofing on parking decks or on traffic areas are especially challenging. Apart from the mechanic demands by traffic, there is also a chemical strain by oil and de-icing salt.
Surface protecting systems prevent the building from these stress-factors and guarantee a long lasting use of the parking area. Systems made from our liquid waterproofing are very resistant and benefit from low structure height. This is especially important for redevelopment and repair.
Waterproofing on parking decks or on traffic areas are especially challenging. Apart from the mechanic demands by traffic, there is also a chemical strain by oil and de-icing salt.
Surface protecting systems prevent the building from these stress-factors and guarantee a long lasting use of the parking area. Systems made from our liquid waterproofing are very resistant and benefit from low structure height. This is especially important for redevelopment and repair.

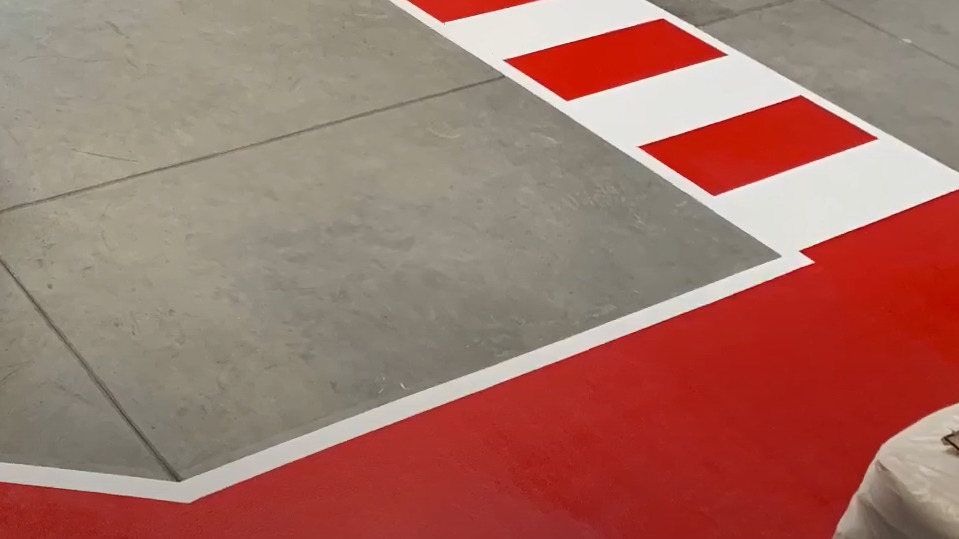

WIDOCRYL-OS 8 System
OS 8 Systems serve as a rigid top layer for trafficable areas which are mechanically and chemically loaded but are not in danger of getting cracks. The WIDOCRYL-OS 8 System is based on liquid waterproofing made from MMA and quartz sand.
The surface can be designed in various colours according to the RAL-list. Giving the parking areas a special design is also possible with our liquid waterproofing. It is proofed and certified according to DIN-EN 1504-2 in consideration of DIN V 18026 “surface protecting waterproofing systems for concrete made from DIN EN 1504-2”.

WIDOCRYL-PG OS 11a-System
The WIDOCRYL-PG OS 11a-System is a multy-layered car park coating system which can be used on roof decks as well as for the interior. The layer structure is used for walkable and trafficable areas and has an increased dynamic crack binding. OS11-Systems protect concrete components from chemical impacts by road salt, fuel or oil, mechanic impacts by vehicle or passenger traffic and also from UV-radiation.
Compared to an OS 8-System, the crack-binding ability is the main benefit of an OS 11-System since the cracks which are forming in the concrete structure are warded off by the OS 11a coating system whereas they are passed through to the coating when using the OS8-system.
WIDOCRYL-PG OS11a system is based on the use of PMMA-resins which benefit from an extremely short curing time of the individual layers. This saves precious time since the parking areas only have to be shut down for a short period of time. Especially with tight schedules or during redevelopments this advantage is unbeatable. The layer thicknes of this system is approx. 6mm.
